THE INNOVATION

Hear the sharp sound cutting through the air.
In pursuit of sharper and faster performance.
Specs are designed to provide the shuttlecock
with speed rather than trying to balance everything.

Inherited know-how with state-of-the-art technology.
Not stereotypical.

A racket form completed with innovation.
A sense of unity to respond as desired.
Ensures a critical shot as if the shuttlecock pierced the court.

This is your new weapon.

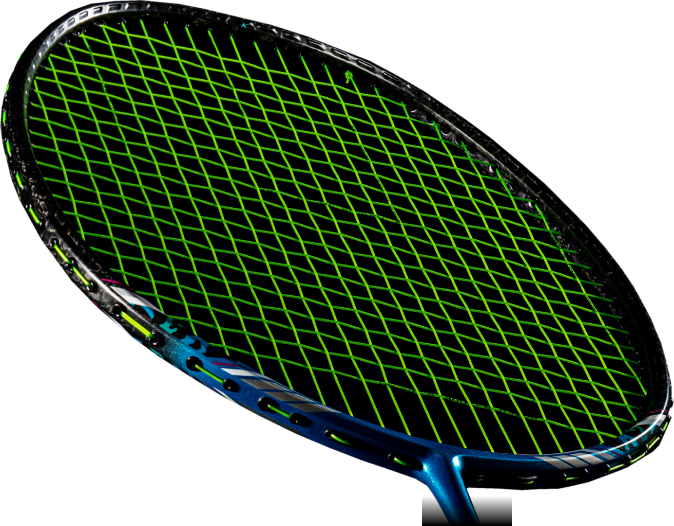

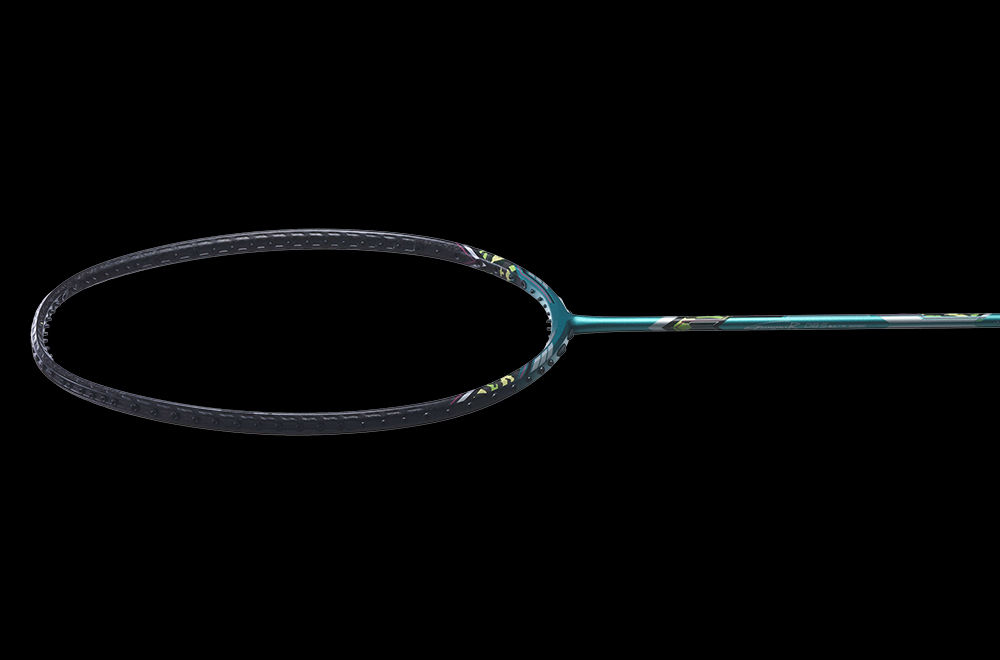

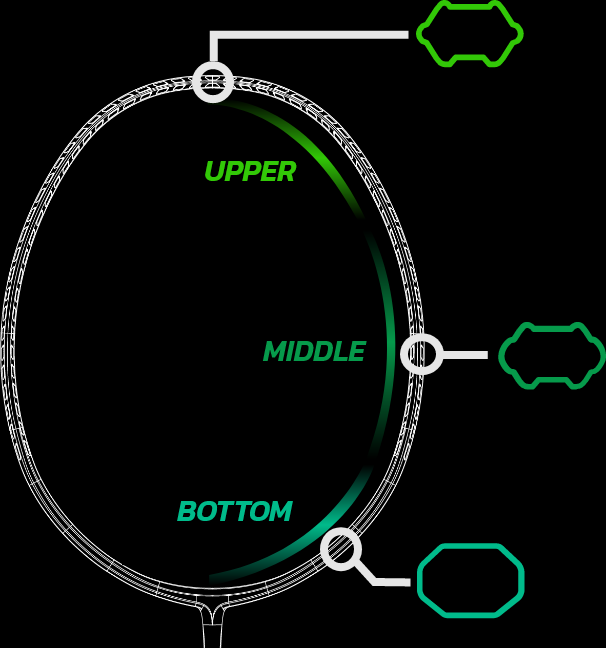

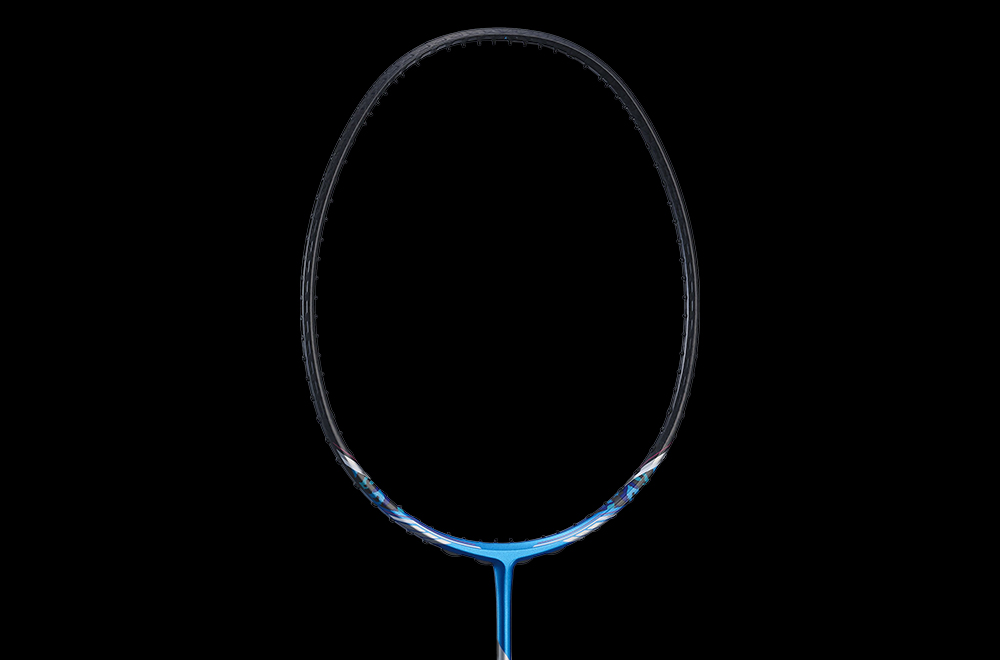

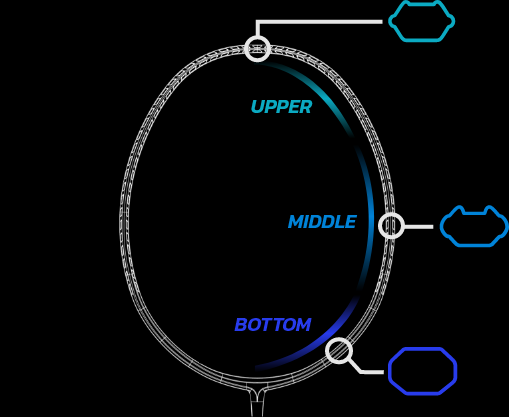

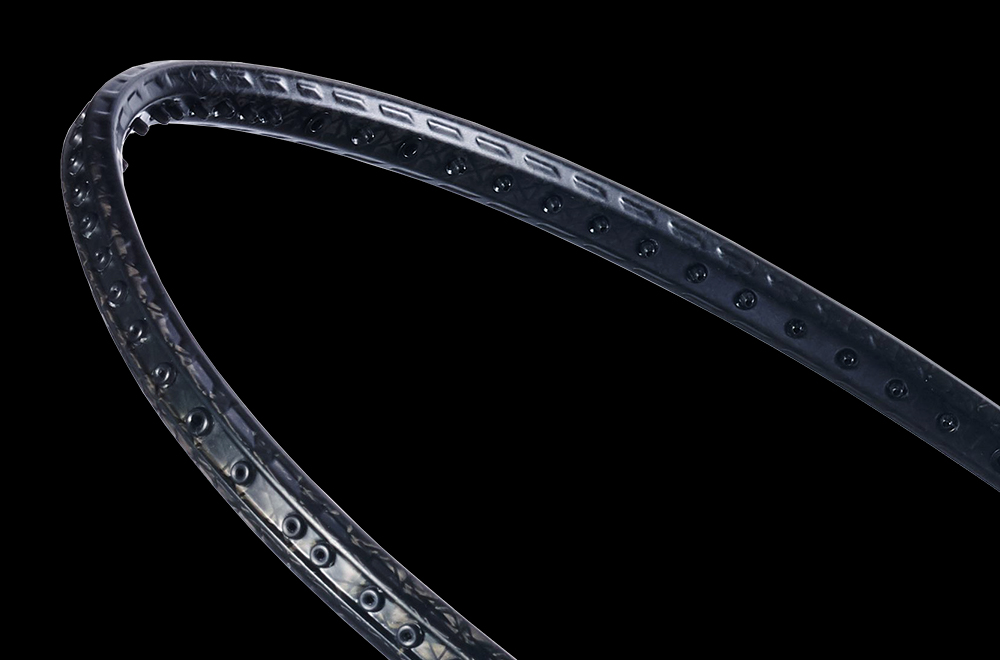

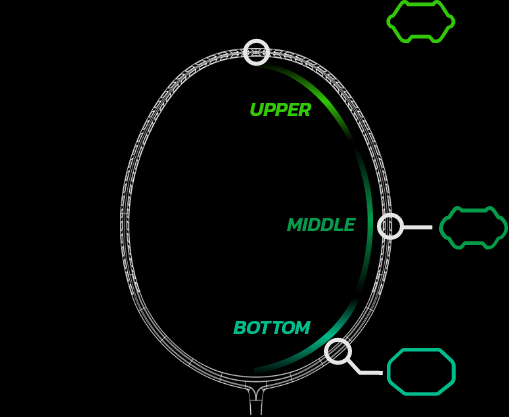

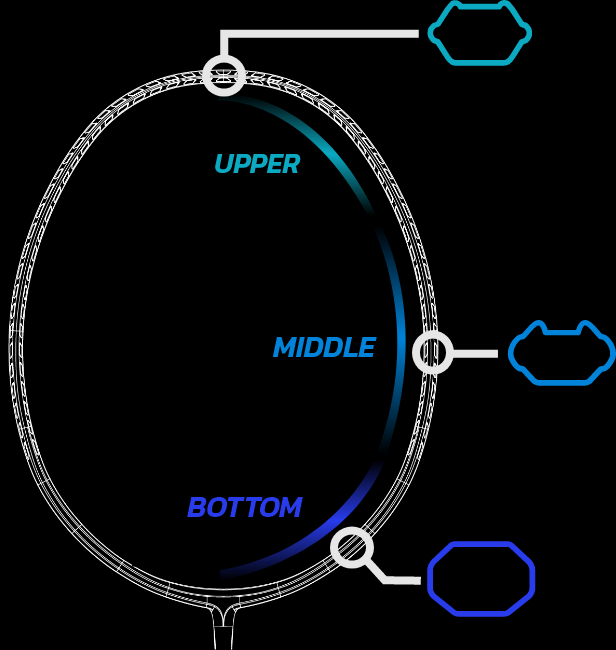

NEO VARIANT FRAME

Cutting through the air.
A light, high-rigidity frame.

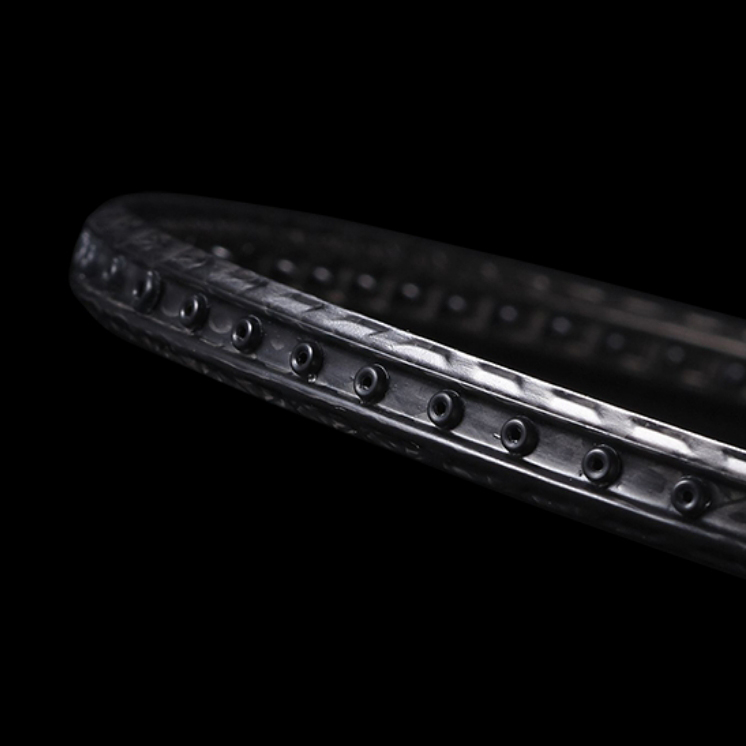

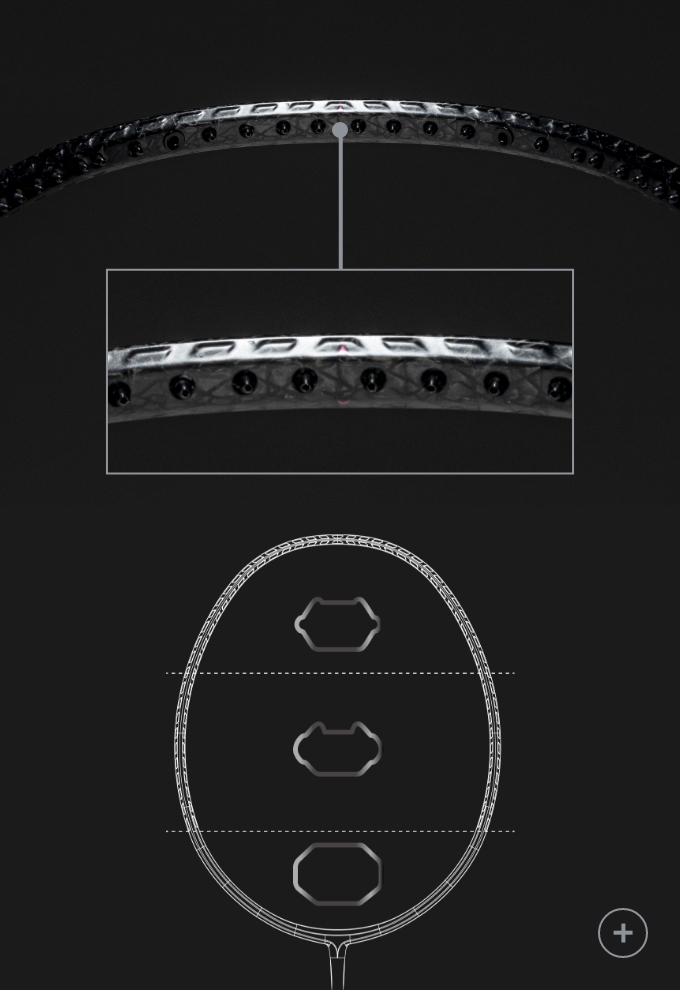

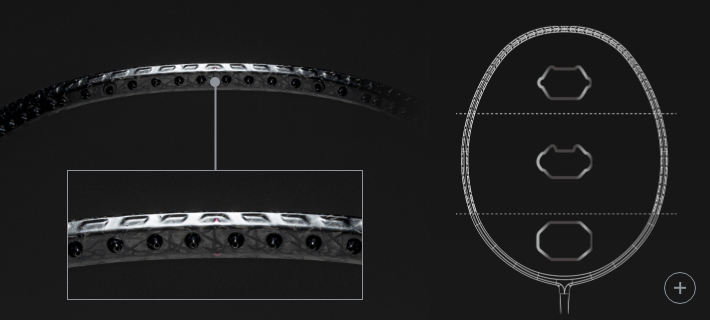

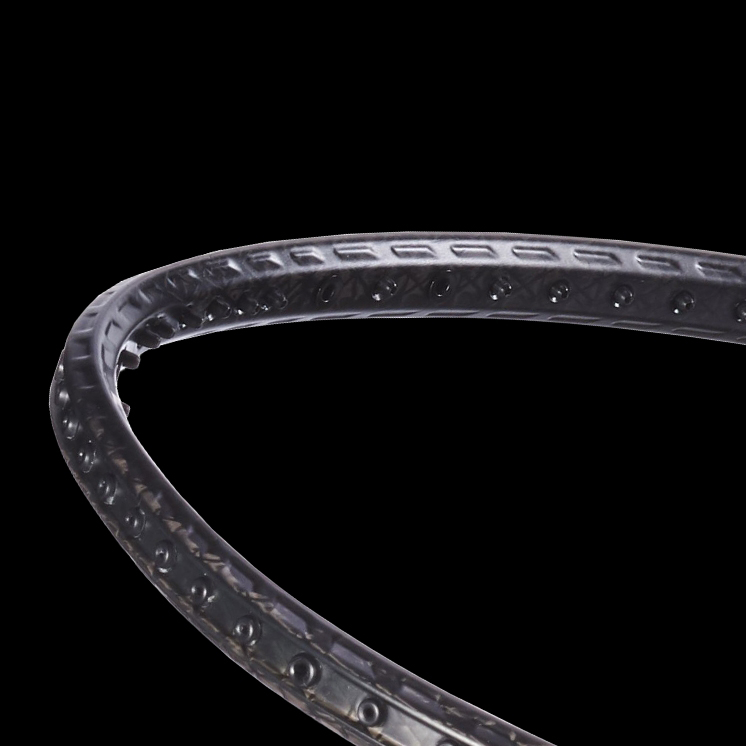

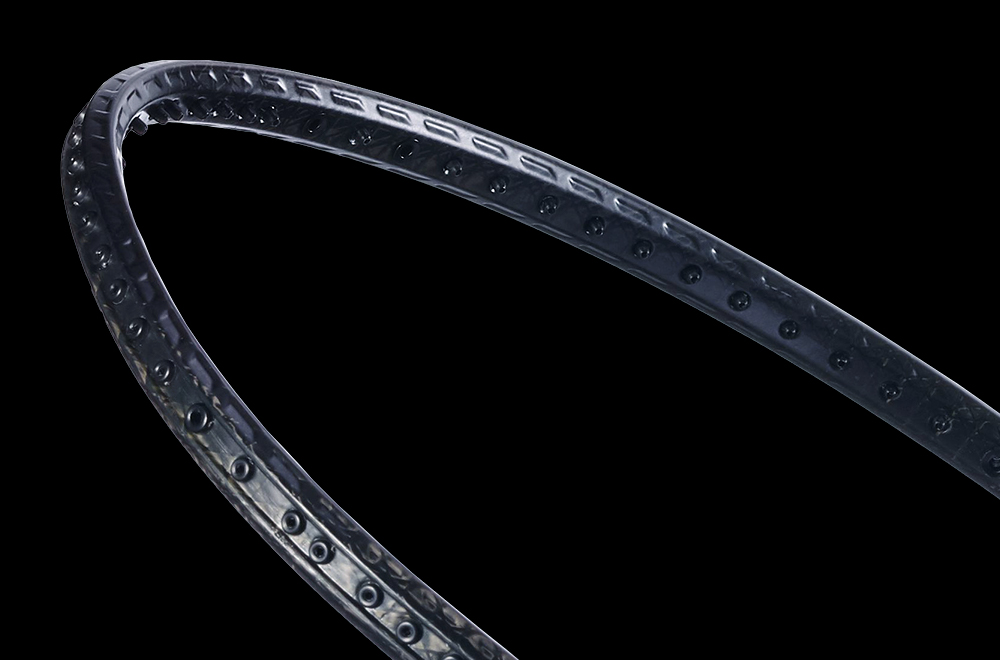

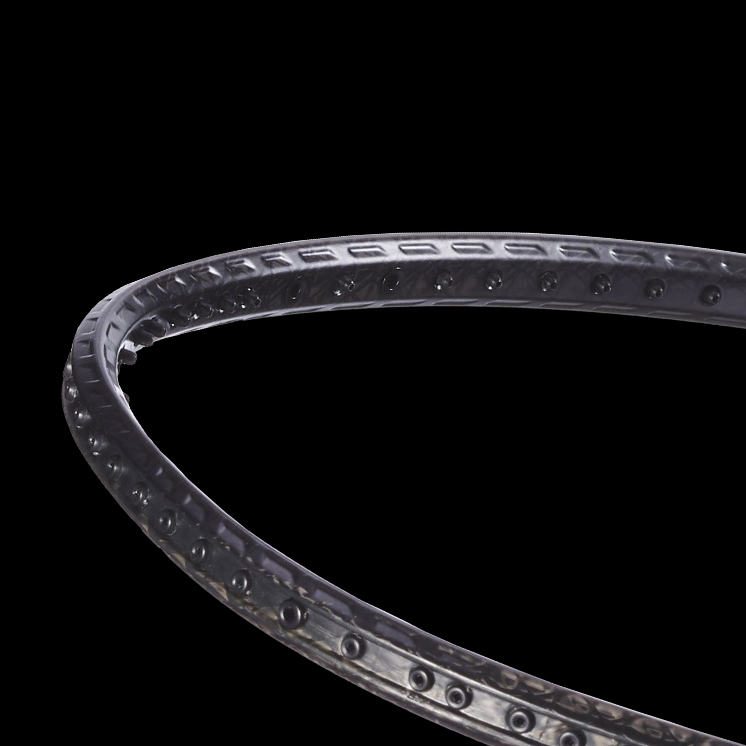

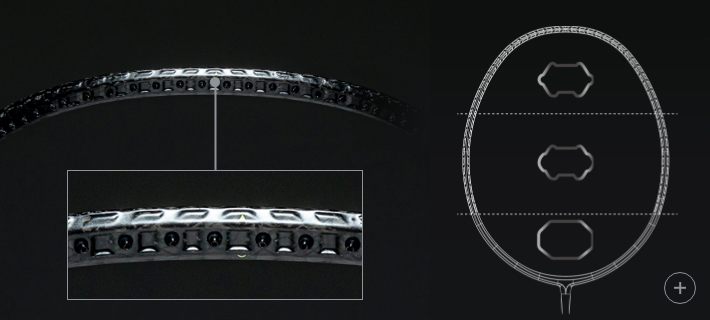

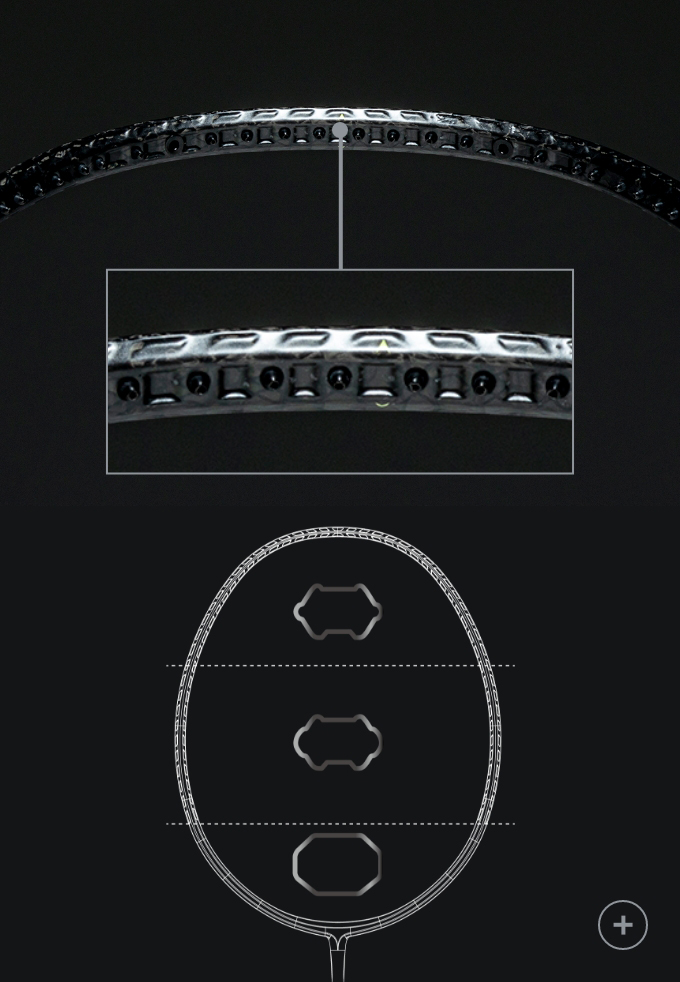

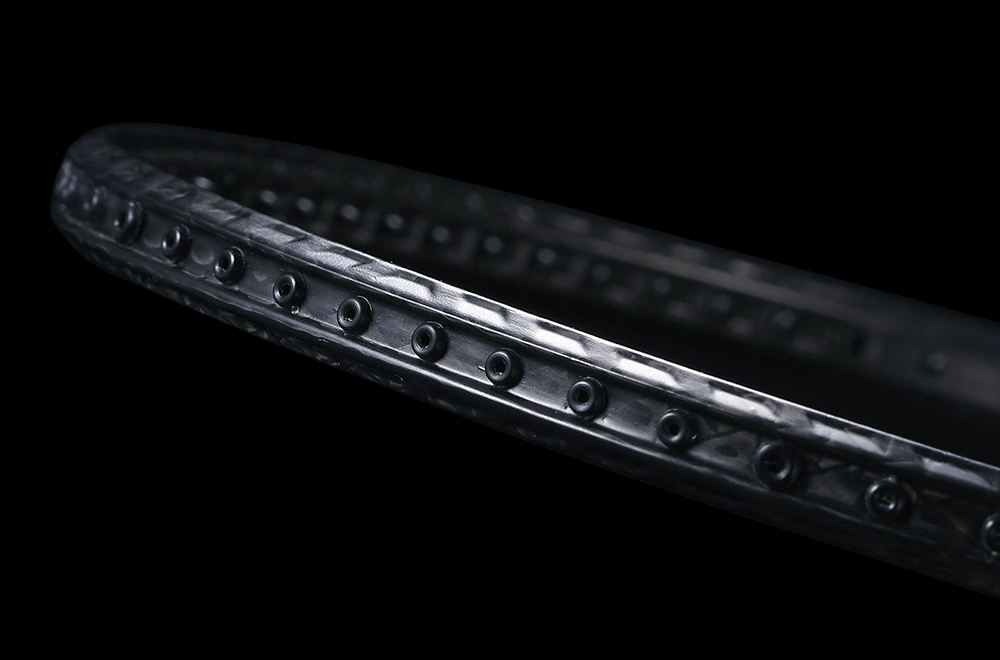

A neo-variant frame developed on the basis of the Gungnir-series frame design. Dimples of multiple parallelogram type are used on the upper surface of the frame. Suppresses air resistance to the max and avoids the stress during swings.
Produces razor-like sharpness and sharp shuttlecock delivery.

Two types of designs can be selected according to the playstyle.

Rigid frame for hard strikers.

08S BETA SPEC

The rising section inside the frame improves the surface stability at impact.
Reduces shaking and enhances control.

High-rebound frame
for all-rounders.

07R ALPHA SPEC 05A EPSILON SPEC

A structure that takes advantage of most of the characteristics of the neo-variant frame as they are but with a smooth inner side of the frame. The high repulsion design can transmit swing power directly to the shuttlecock.

TRAIAXIAL
CARBON

TRAIAXIAL CARBON

Disperses stress.

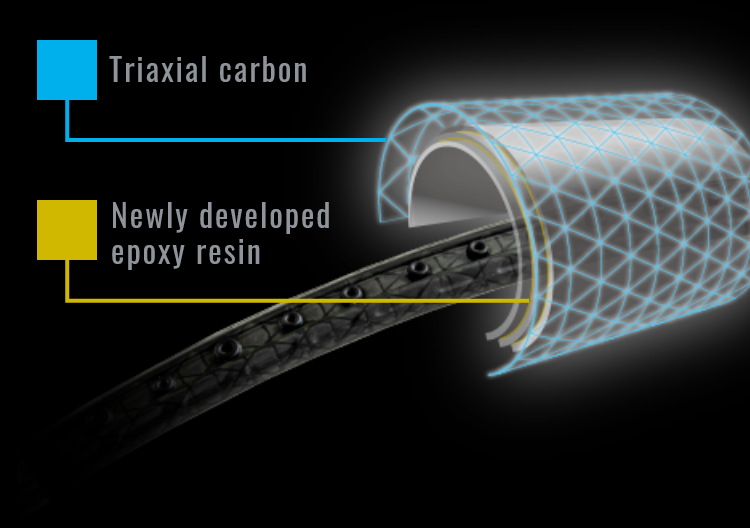

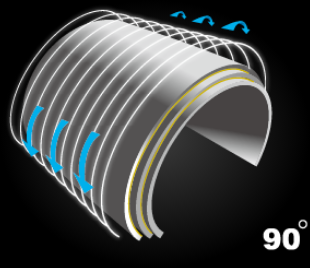

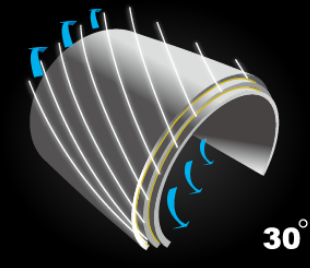

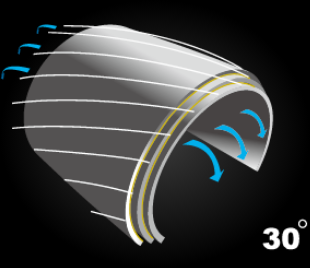

Triaxial carbon

A structure in which carbon fibers of different angles are woven in three directions.
Additionally, a newly developed epoxy resin with high bonding strength further reduces the weight and increases the rigidity of the frame.
Withstands stress from various angles that occur at the time of the impact and produces power that directly transmits swing energy and control performance with less shaking.

Frame rigidity to withstand stress from various directions

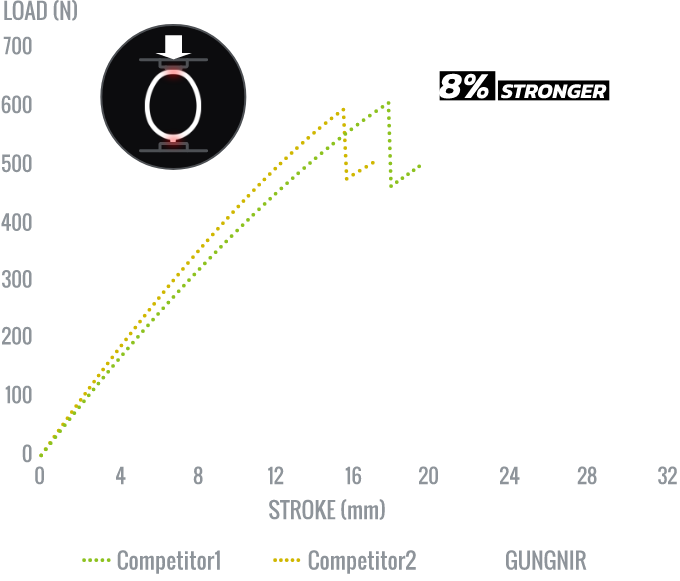

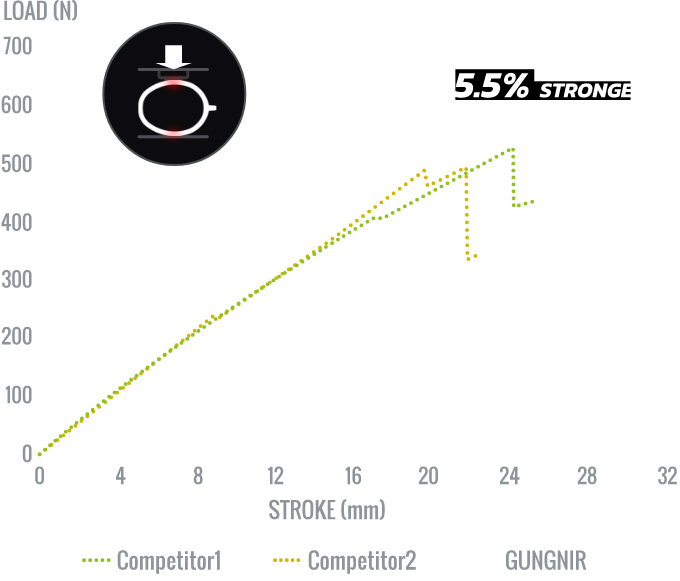

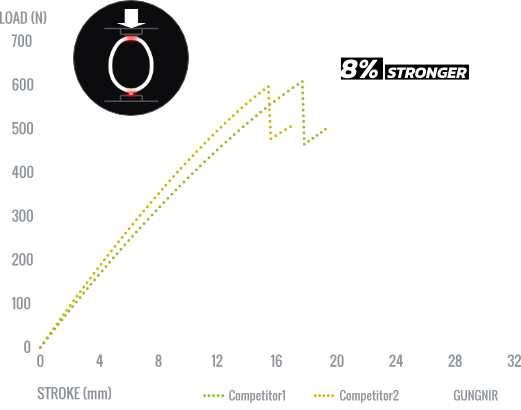

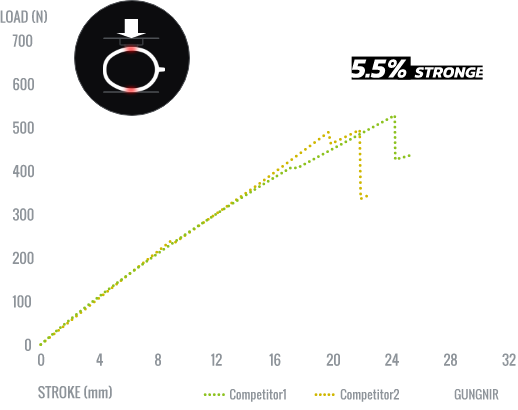

Load fracture test on the frame top

$Load fracture test on the frame top$ $Load fracture test on the frame top$

Load fracture test on the frame side

$Load fracture test on the frame side$ $Load fracture test on the frame side$

*Tested by GOSEN Co., Ltd.
*Autograph Ag-X(100kN)Rate of compression:20mm/min
*1[N]=1/9.8[kgf]=0.102[kgf]

SHAFT PERFORMANCE

Shaft design developed by
verifying swing patterns

Maximizes the rebound performance of the shaft at the time of impact by precisely performing flex and torque settings according to the swing pattern.

Shaft design developed by verifying swing patterns

SHAFT FLEX
L ～ A

Large swing around the upper arm
SHAFT FLEX
R ～ S

Compact swing by the pronation of the forearm
SHAFT FLEX
S ～ X

Power swing to push down the shuttlecock

GRADE

Recommended Player: FOR SMASH

Weight: 83-85G(4U)

Total Length: 680 mm

Maximum Tension: 30 LBS

Swing Balance: TOP LIGHT TOP HEAVY

Flex: SOFT STIFF

Frame size: 55 SQ.IN

Stringing pattern: 22×21

The persuasive power and cross smash course are evident.

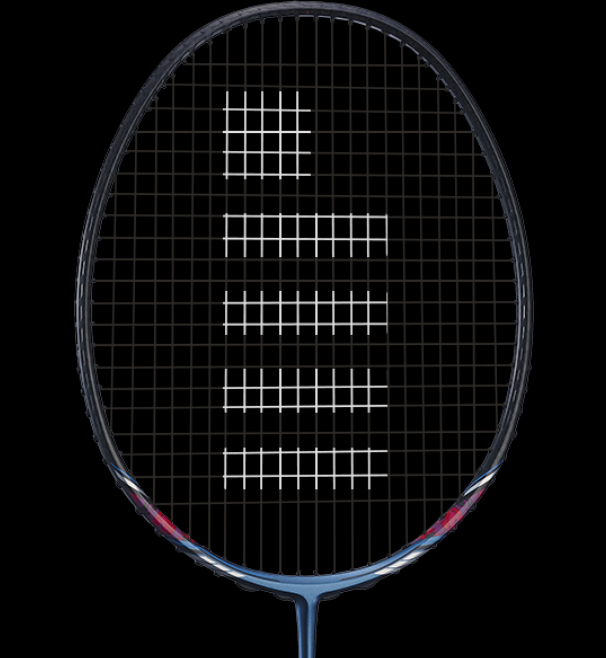

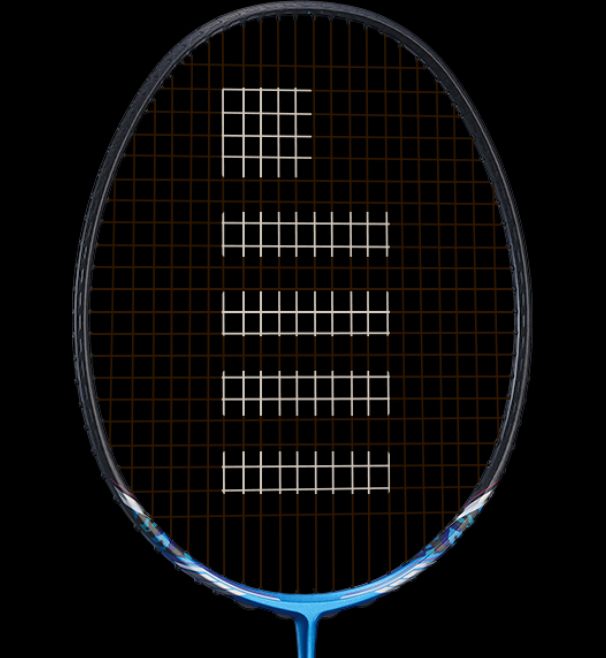

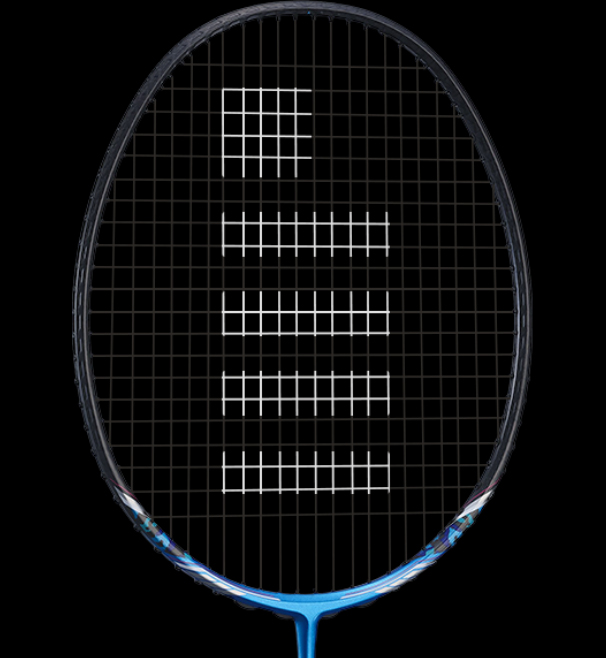

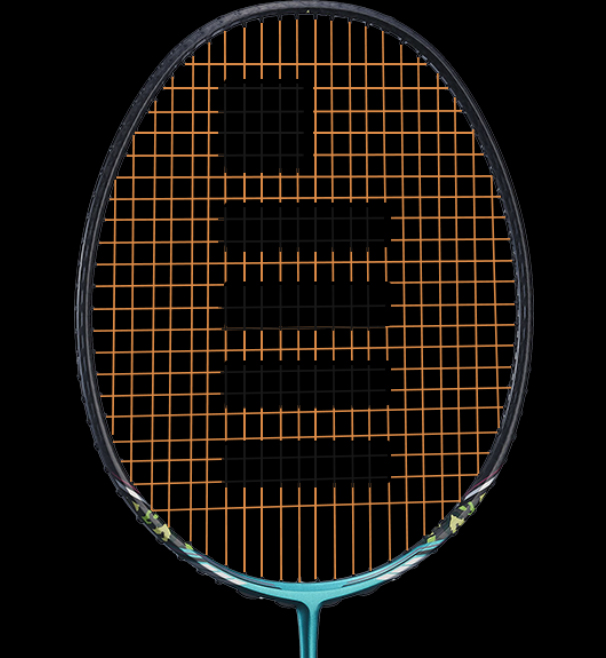

STRING VARIATION

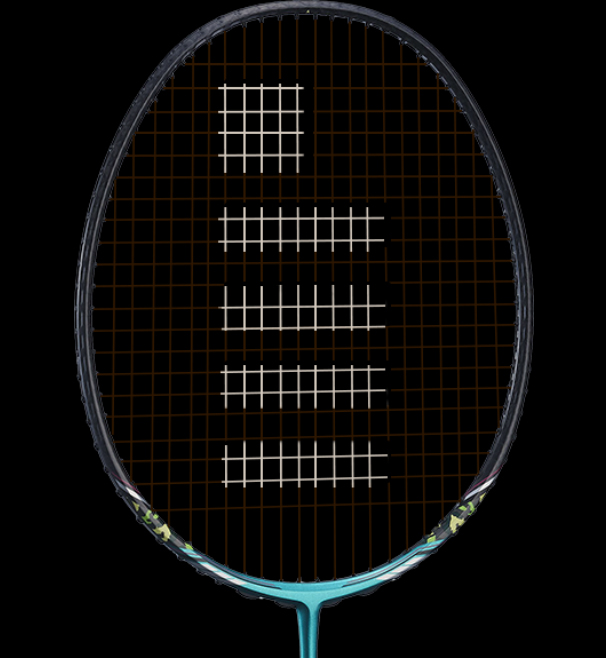

NATURAL(BS065NA)(BS069NA)

BLACK(BS065BK)(BS069BK)

LIME GREEN(BS065LG)(BS069LG)

ORANGE(BS065OR)(BS069OR)

YELLOW(BS065Y)(BS069Y)

SALMON PINK(BS065SP)

LIGHT BLUE(BS065LB)

FLASH YELLOW(BS065FY)

ASH BROWN(BS069AB)

SELECT COLOR

NATURAL
BLACK
LIME GREEN
ORANGE
YELLOW
SALMON PINK
LIGHT BLUE
FLASH YELLOW
ASH BROWN

Recommended Player: FOR ALL AROUND

Weight: 81-83G(4U)

Total Length: 680 mm

Maximum Tension: 28 LBS

Swing Balance: TOP LIGHT TOP HEAVY

Flex: SOFT STIFF

Frame size: 55 SQ.IN

Stringing pattern: 22×21

Continuous steep smashes from a high hitting point at high speed.

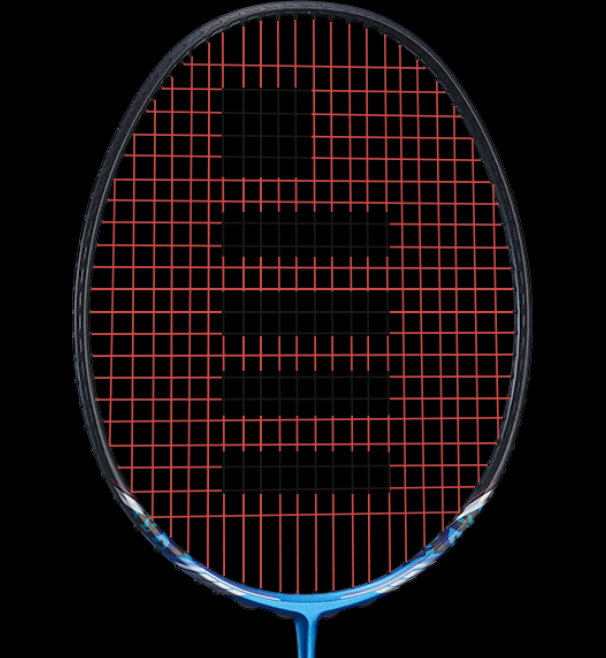

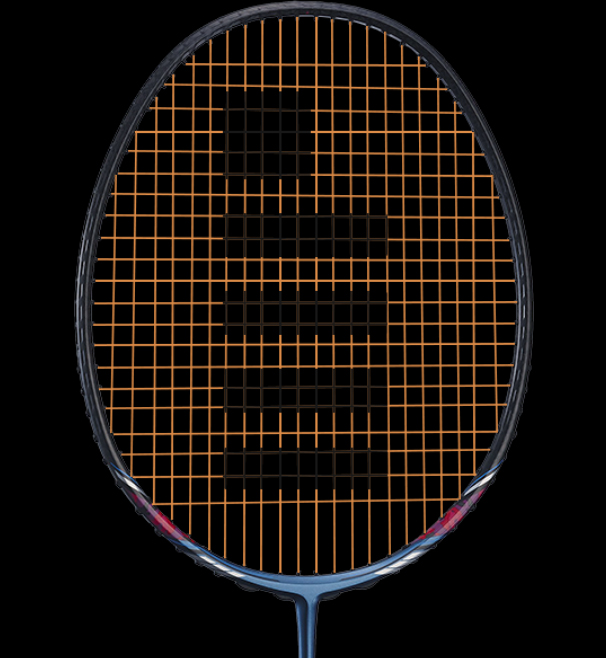

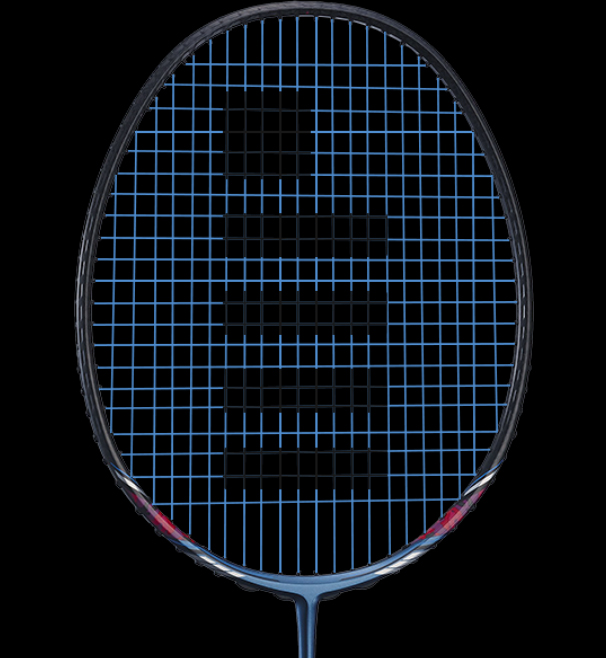

STRING VARIATION

NATURAL(BS065NA)(BS069NA)

BLACK(BS065BK)(BS069BK)

LIME GREEN(BS065LG)(BS069LG)

ORANGE(BS065OR)(BS069OR)

YELLOW(BS065Y)(BS069Y)

SALMON PINK(BS065SP)

LIGHT BLUE(BS065LB)

FLASH YELLOW(BS065FY)

ASH BROWN(BS069AB)

SELECT COLOR

NATURAL
BLACK
LIME GREEN
ORANGE
YELLOW
SALMON PINK
LIGHT BLUE
FLASH YELLOW
ASH BROWN

Recommended Player: FOR CLEAR / RALLY

Weight: 80-82G(4U)

Total Length: 680 mm

Maximum Tension: 26 LBS

Swing Balance: TOP LIGHT TOP HEAVY

Flex: SOFT STIFF

Frame size: 55 SQ.IN

Stringing pattern: 22×21

Delivers sharp counter shots.

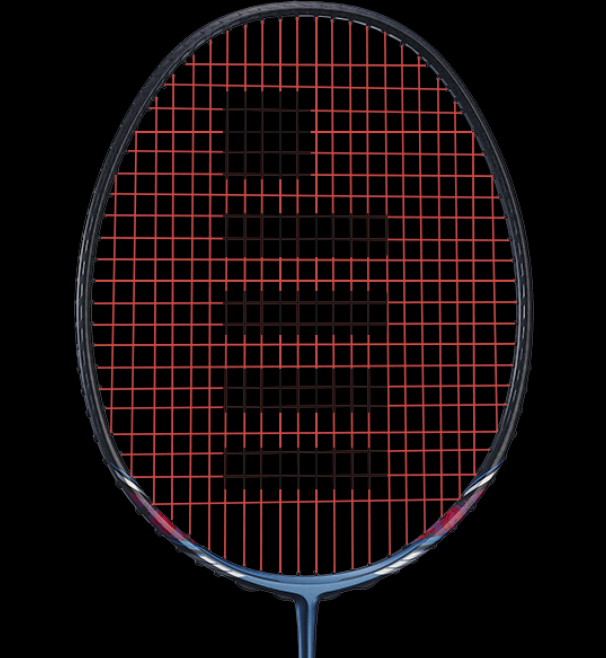

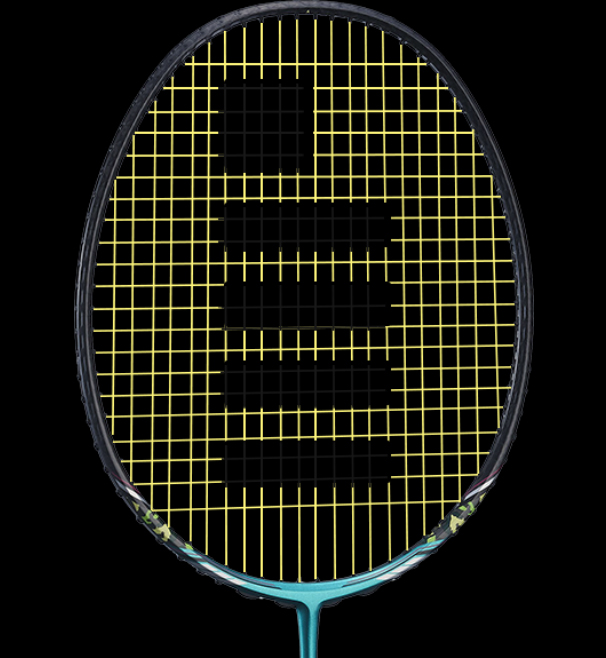

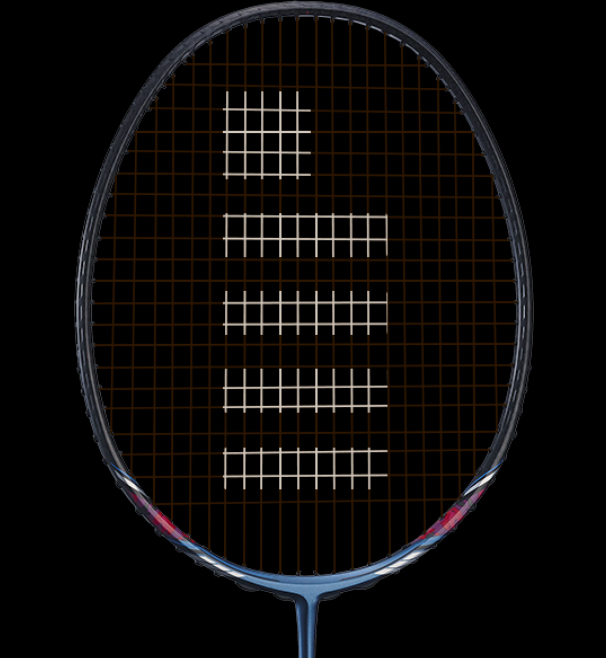

STRING VARIATION

NATURAL(BS065NA)(BS069NA)

BLACK(BS065BK)(BS069BK)

LIME GREEN(BS065LG)(BS069LG)

ORANGE(BS065OR)(BS069OR)

YELLOW(BS065Y)(BS069Y)

SALMON PINK(BS065SP)

LIGHT BLUE(BS065LB)

FLASH YELLOW(BS065FY)

ASH BROWN(BS069AB)

SELECT COLOR

NATURAL
BLACK
LIME GREEN
ORANGE
YELLOW
SALMON PINK
LIGHT BLUE
FLASH YELLOW
ASH BROWN

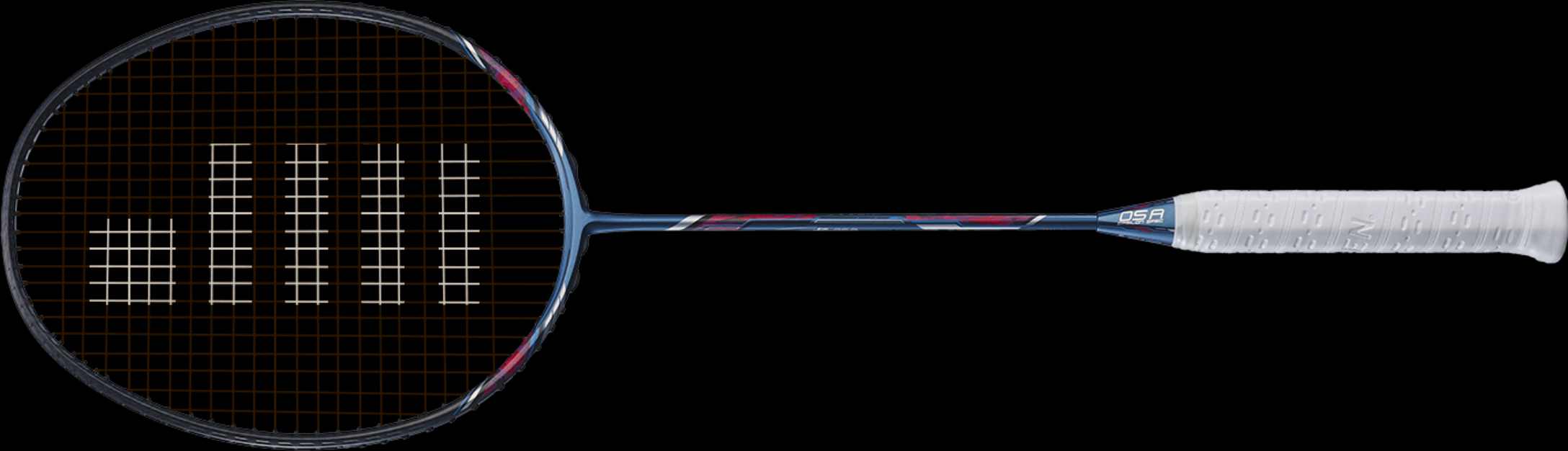

SPEC

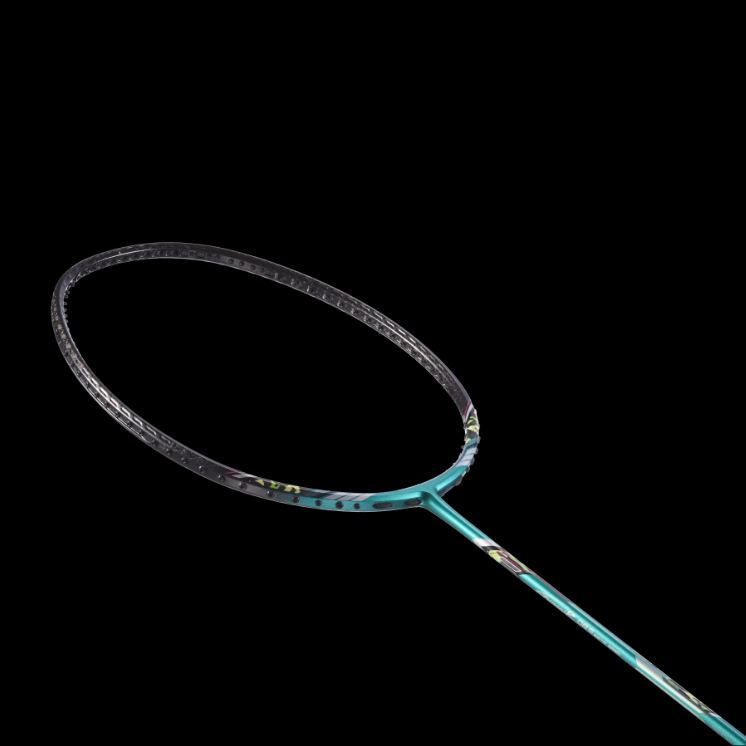

08S BETA SPEC

Model number	BGG08S

Length	Whole length	680
	Grip length	200
	Face area	54.97
	Thickness of frame at 12 o’clock	10.0
	Thickness of frame at 3 & 9 o’clock	11.0
	Thickness of frame at 6 o’clock	10.0
	External diameter (Shaft)	7.0
	Grip size	G5

Weight		83-85G / 4U

Frame	Shape	OG SQUARE
	Design	NEO-VARIANT FRAME
	Material	TRIAXIAL CARBON

Shaft	Flex	8.3
	Flex No.	S (STIFF)
	Flex point	Middle
	Material	High modulus carbon

Grip	Material	Wood

Characteristic of racket	Characteristic	FOR SMASH
	Swing balance	EVEN
	Flex	STIFF

Stringing	Stringing pattern	M22 × C21
	Recommended tension	20-28LBS
	Maximum tension	30LBS
	Recommended string	G-TONE 5 / G-TONE 9

Color		GREEN(GR)

Target player	Men's	Intermediate/Advanced
Target player	Lady's	Advanced

Country of origin		TAIWAN

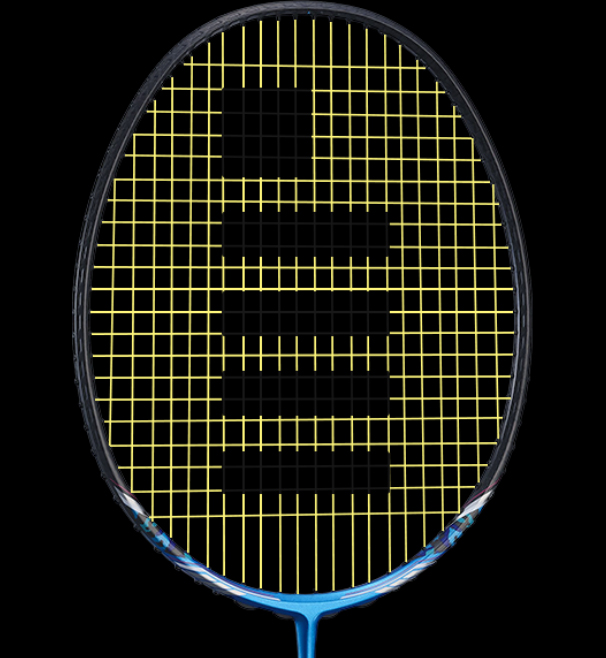

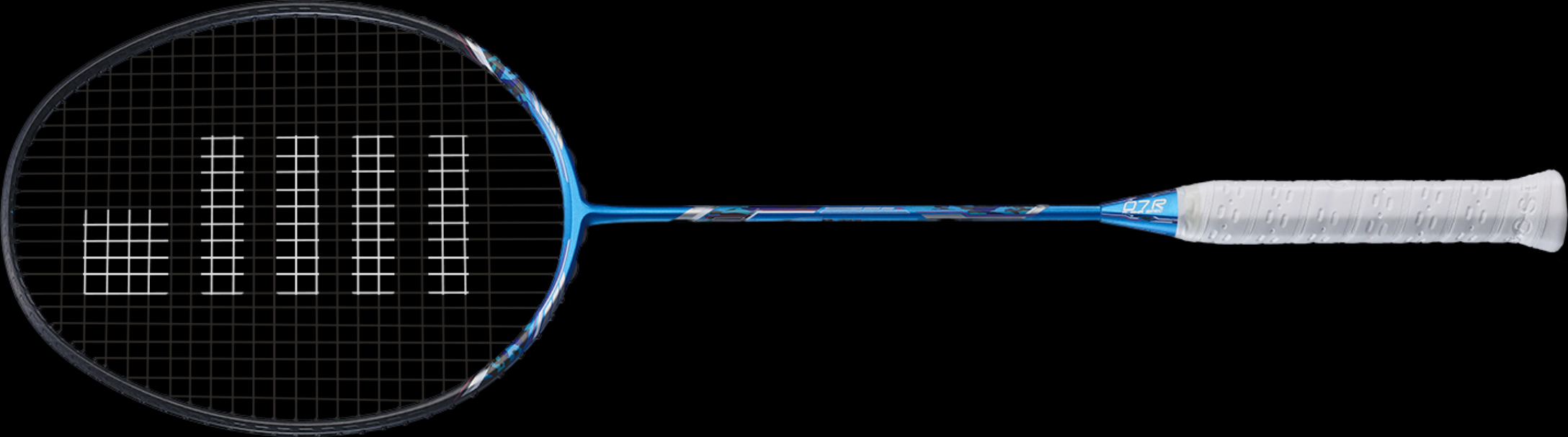

07R ALPHA SPEC

Model number	BGG07R

Length	Whole length	680
	Grip length	200
	Face area	54.97
	Thickness of frame at 12 o’clock	10.0
	Thickness of frame at 3 & 9 o’clock	11.0
	Thickness of frame at 6 o’clock	10.0
	External diameter (Shaft)	7.0
	Grip size	G5

Weight		81-83G / 4U

Frame	Shape	OG SQUARE
	Design	NEO-VARIANT FRAME
	Material	TRIAXIAL CARBON

Shaft	Flex	8.7
	Flex No.	R (REGULAR)
	Flex point	Middle
	Material	High modulus carbon

Grip	Material	Wood

Characteristic of racket	Characteristic	FOR ALL AROUND
	Swing balance	TOP LIGHT
	Flex	STIFF

Stringing	Stringing pattern	M22 × C21
	Recommended tension	20-26LGS
	Maximum tension	28LBS
	Recommended string	G-TONE 5 / G-TONE 9

Color		BLUE(BL)

Target player	Men's	Intermediate/Advanced
Target player	Lady's	Intermediate/Advanced

Country of origin		TAIWAN

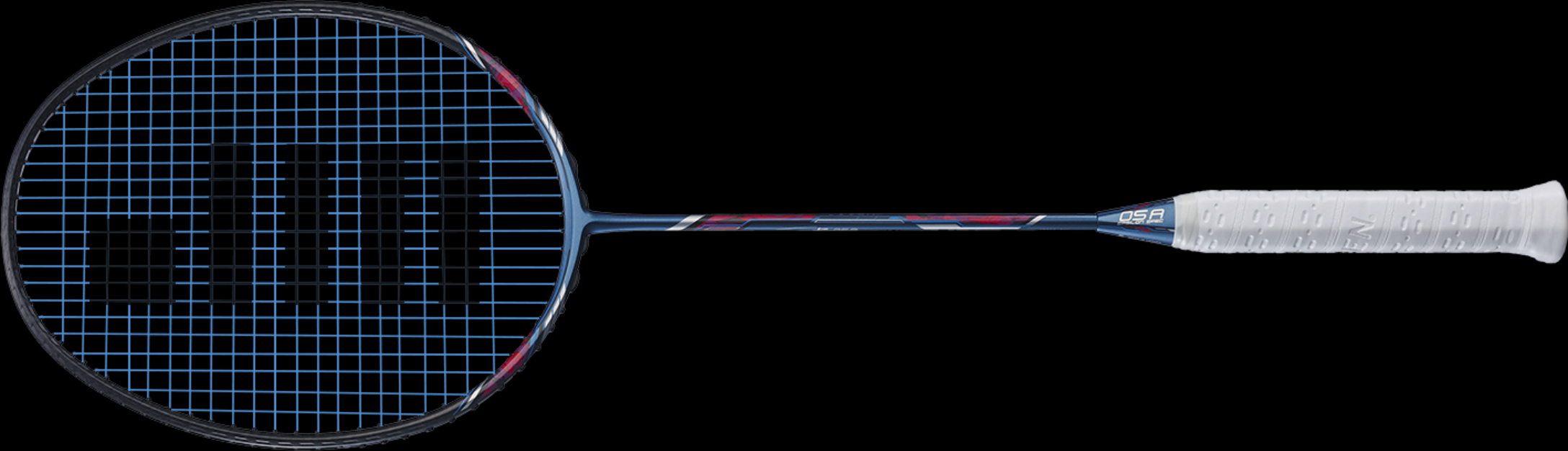

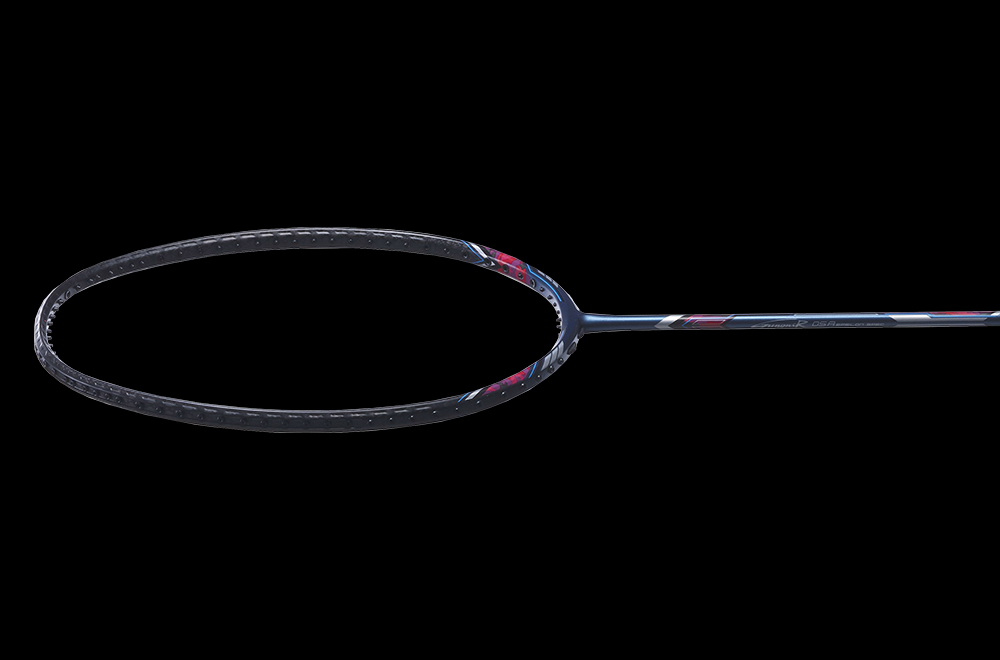

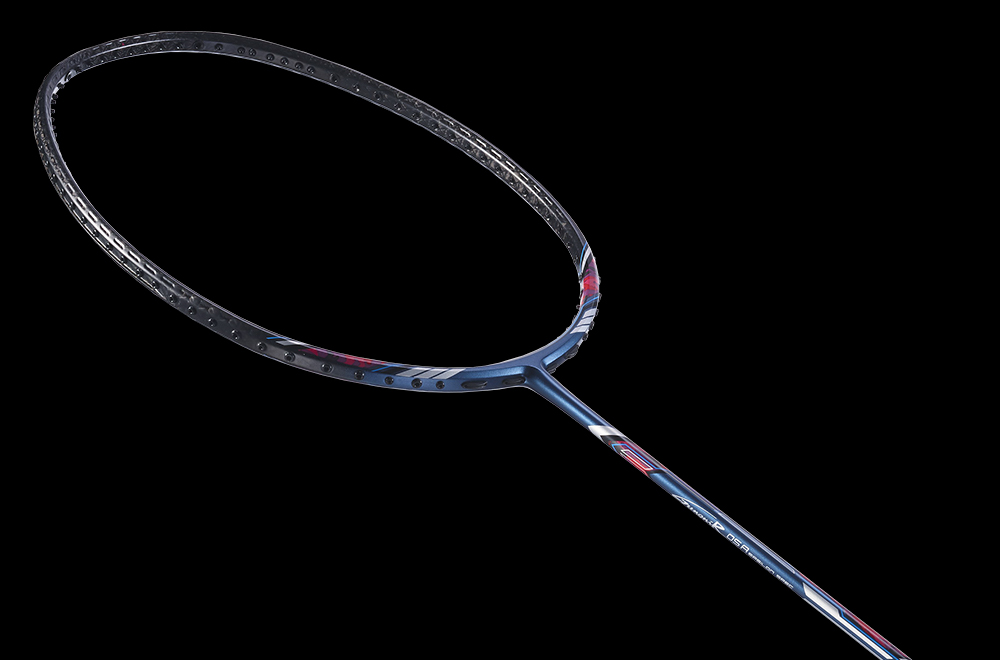

05A EPSILON SPEC

Model number	BGG05A

Length	Whole length	680
	Grip length	200
	Face area	54.97
	Thickness of frame at 12 o’clock	10.0
	Thickness of frame at 3 & 9 o’clock	11.0
	Thickness of frame at 6 o’clock	10.0
	External diameter (Shaft)	7.0
	Grip size	G6

Weight		80-82G / 4U

Frame	Shape	OG SQUARE
	Design	NEO-VARIANT FRAME
	Material	TRIAXIAL CARBON

Shaft	Flex	9.3
	Flex No.	A (AVERAGE)
	Flex point	Middle
	Material	High modulus carbon

Grip	Material	Wood

Characteristic of racket	Characteristic	FOR CLEAR / RALLY
	Swing balance	TOP LIGHT
	Flex	REGULAR

Stringing	Stringing pattern	M22 × C21
	Recommended tension	20-24LBS
	Maximum tension	26LBS
	Recommended string	G-TONE 5 / G-TONE 9

Color		NAVY(NV)

Target player	Men's	Beginner/Intermediate
Target player	Lady's	Beginner/Intermediate/Advanced

Country of origin		TAIWAN

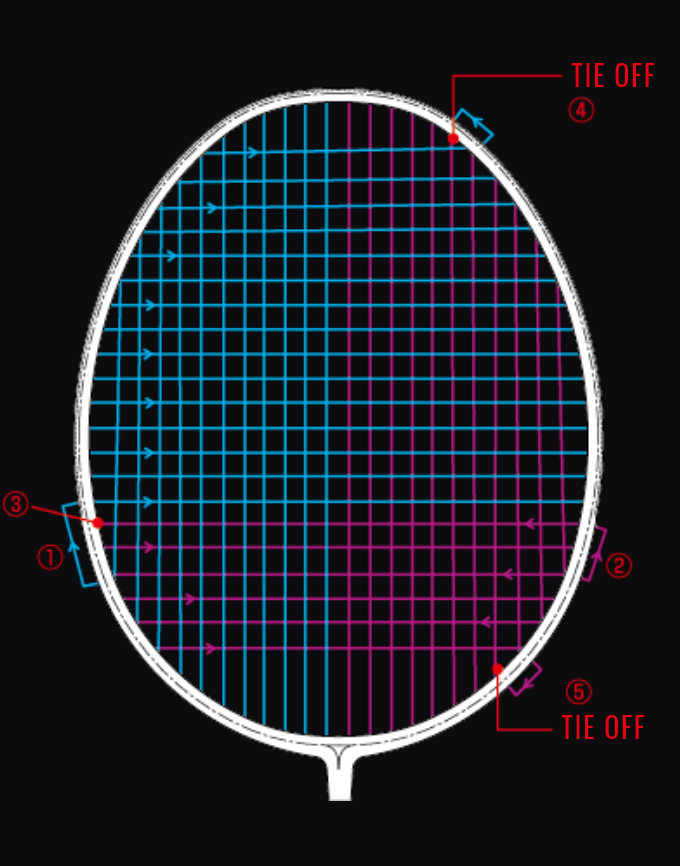

STRINGING PATTERN

STRINGING PATTERN FOR GRAVITAS, INFERNO & GUNGNIR SERIES.
(MAIN STRING 22× CROSS STRING 21)

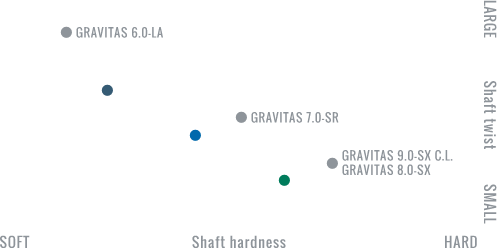

RACKET MATRIX
